High efficiency dehydration separator in hydrocarbon (oil)
烃(油)中脱水分离器应用于石油炼化、乙烯、煤制油等领域,实现有机物烃类中高精度的脱水效果。
Dehydration separator in hydrocarbon (oil) is used in petroleum refining, ethylene, coal to oil and other fields to achieve high-precision dehydration effect in organic hydrocarbons.
设备内部装有一级聚结芯和斥水分离芯,均采用的是特殊的载体和特殊的表面活性剂制造,常用的载体为尼龙或含氟超细纤维和甲基硅烷醇、纳米碳酸钙、含F、Si 类表面活性剂等,一级芯具有强烈的亲水作用,烃类或混合油类中含有的水被吸附在一级芯的纤维上,水分子不断被吸附涨大,形成足够大的水滴后,破坏界面张力而脱附,从而与连续相烃(油)类分成两相,油和水从聚结芯出来后,水滴靠重力下降而分层,通过排水阀和界面计的连锁控制水相外排。斥水分离芯的功能是亲油疏水,油类能够通过,而水分子不能透过,从而达到有机烃类(油)和水的高精度分离。

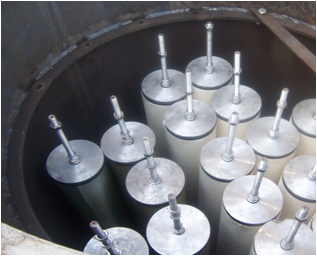

Inside the equipment, there are primary coalescence cores and water repellent separation cores, both of which are made of special carriers and special surfactants. The commonly used carriers are nylon or fluorine-containing microfiber and methylsilane alcohol, nano calcium carbonate, surfactants containing F and Si, etc. the primary core has strong hydrophilic effect. The water contained in hydrocarbons or mixed oils is adsorbed on the fibers of the primary core, and the water molecules are constantly adsorbed and expanded, After the formation of sufficiently large water droplets, the interfacial tension is destroyed and desorbed, so as to be divided into two phases with continuous phase hydrocarbons (oils). After the oil and water come out of the coalescence core, the water droplets fall and layer by gravity, and the water phase is discharged through the interlocking control of drainage valve and interface meter. The function of water repellent separation core is lipophilic and hydrophobic. Oil can pass through it, but water molecules cannot, so as to achieve high-precision separation of organic hydrocarbons (oil) and water.
滤材本身具有过滤、破乳的功能,绝对过滤精度为20 微米,为了增加设备的寿命及满意的分离效果,如果介质中含有颗粒较大的悬浮物,建议增加预过滤器。
The filter material itself has the functions of filtration and demulsification, and the absolute filtration accuracy is 20 microns. In order to increase the service life of the equipment and satisfactory separation effect, if the medium contains suspended solids with large particles, it is recommended to add a pre filter.
典型应用:
1、 去除碱处理过程下游精制燃料中夹带的残碱。
2、 去除各种油品中的游离水,如:汽油、柴油、润滑油、煤油及各种芳烃、烷烃等。
3、 去除液/液胺接触塔(胺洗塔)下游碳氢化合物中夹带的胺。
Typical applications:
1. Remove the residual alkali entrained in the refined fuel downstream of the alkali treatment process.
2. Remove free water from various oil products, such as gasoline, diesel, lubricating oil, kerosene, various aromatic hydrocarbons, alkanes, etc.
3. Remove the amine contained in the hydrocarbon downstream of the liquid / liquid amine contact tower (amine scrubber).
